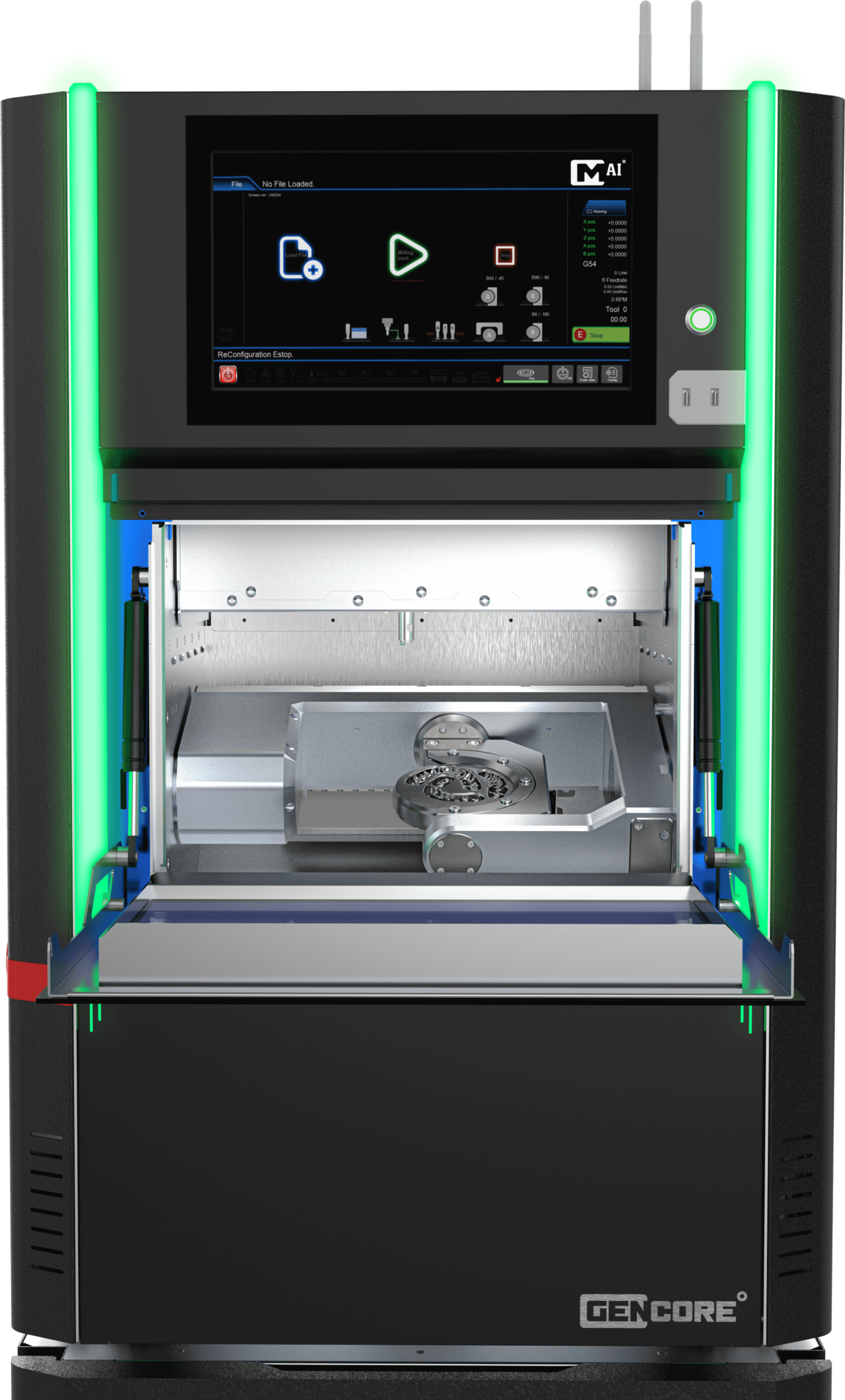

Dental Milling Machine
Dental Milling Machine
M AI° Features
M AI° Features
Spindle
The M AI° is equipped with a DC 1.37-kilowatt spindle
from high-quality spindle manufacturer SycoTec of Germany.
from high-quality spindle manufacturer SycoTec of Germany.
M AI°is equipped with a 1.37kW DC-type spindle from the renowned German spindle manufacturer, SycoTec. Compared to AC spindles, DC-type spindles offer several advantages, including precise speed and torque control, fast response times, and exceptional durability. In particular, they provide stable control at low speeds, making them an essential component for small-scale equipment and applications requiring precision control. The 1.37kW DC spindle in M AI° delivers higher torque output than equivalent AC-type spindles, achieving performance comparable to that of a 2.2kW AC-type spindle.
Spindle
The M AI° is equipped with a DC 1.37-kilowatt spindle from high-quality spindle manufacturer SycoTec of Germany.
M AI°is equipped with a 1.37kW DC-type spindle from the renowned German spindle manufacturer, SycoTec. Compared to AC spindles, DC-type spindles offer several advantages, including precise speed and torque control, fast response times, and exceptional durability. In particular, they provide stable control at low speeds, making them an essential component for small-scale equipment and applications requiring precision control. The 1.37kW DC spindle in M AI° delivers higher torque output than equivalent AC-type spindles, achieving performance comparable to that of a 2.2kW AC-type spindle.
Ballscrew & Reducer
X, Y, Z Axis (Linear Motion) – C5 Class Ball Screw Applied
The higher the precision grade of a ball screw, the more accurately it can position the target. While C7 class ball screws are commonly used, M AI° is equipped with a higher-grade C5 class ball screw for superior precision.
A, B Axis (Rotary Motion) – Harmonic Drive Applied
A high-precision gear system that eliminates backlash when gears engage, providing excellent reduction capability and high torque transmission efficiency.
Ballscrew & Reducer
X, Y, Z Axis (Linear Motion) – C5 Class Ball Screw Applied
The higher the precision grade of a ball screw, the more accurately it can position the target. While C7 class ball screws are commonly used, M AI° is equipped with a higher-grade C5 class ball screw for superior precision.
A, B Axis (Rotary Motion) – Harmonic Drive Applied
A high-precision gear system that eliminates backlash when gears engage, providing excellent reduction capability and high torque transmission efficiency.
Nozzle
M AI° is designed to spray cutting fluid toward the tool’s blade from four directions.
This meticulous design minimizes the time during the milling process when the cutting fluid does not contact the tool’s blade, ensuring machining operations.
Nozzle
M AI° is designed to spray cutting fluid toward the tool’s blade from four directions.
This meticulous design minimizes the time during the milling process when the cutting fluid does not contact the tool’s blade, ensuring machining operations.
Intuitive UI
The user interface (UI) of M AI° is designed to be intuitive and easy to understand.
The user-friendly design not only allows novice users who are unfamiliar with the equipment to easily control it, but also enables seamless interaction between the equipment and the user, streamlining operations and maximizing efficiency and convenience.
Intuitive UI
The user interface (UI) of M AI° is designed to be intuitive and easy to understand.
The user-friendly design not only allows novice users who are unfamiliar with the equipment to easily control it, but also enables seamless interaction between the equipment and the user, streamlining operations and maximizing efficiency and convenience.
90-degree Milling
The jig of M AI° is designed to ensure various machining directions, allowing machining from multiple angles to minimize undercuts.
M AI°s Full Closed Loop system enables precise control even when each axis moves freely in multiple directions, making it easy to perform complex machining tasks using highly versatile accessories.
90-degree Milling
The jig of M AI° is designed to ensure various machining directions, allowing machining from multiple angles to minimize undercuts.
M AI°s Full Closed Loop system enables precise control even when each axis moves freely in multiple directions, making it easy to perform complex machining tasks using highly versatile accessories.
Jigs
Jigs

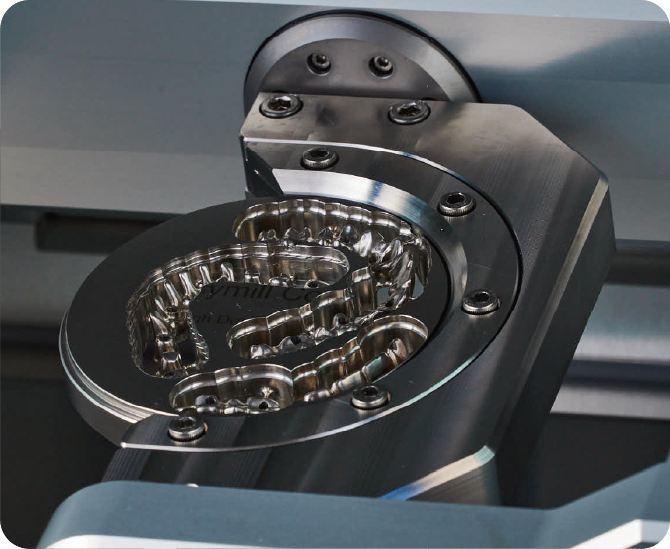

C-Clamp Jigs
Φ98.5mm Disk

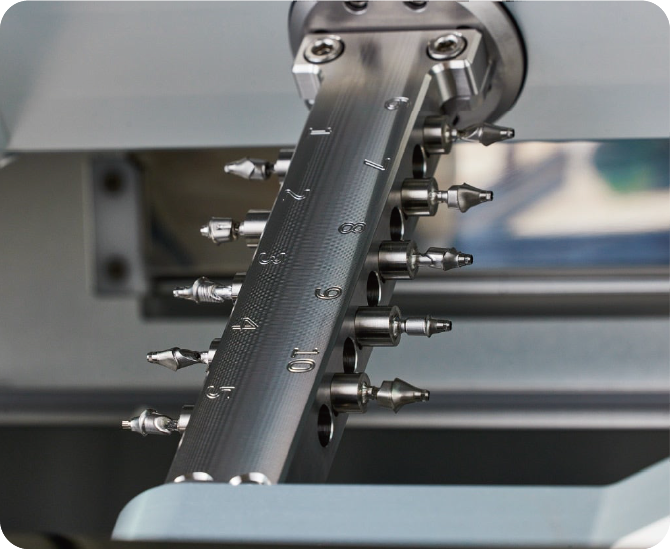

Premill Jigs
#10 Slots (5-Axis Machining)

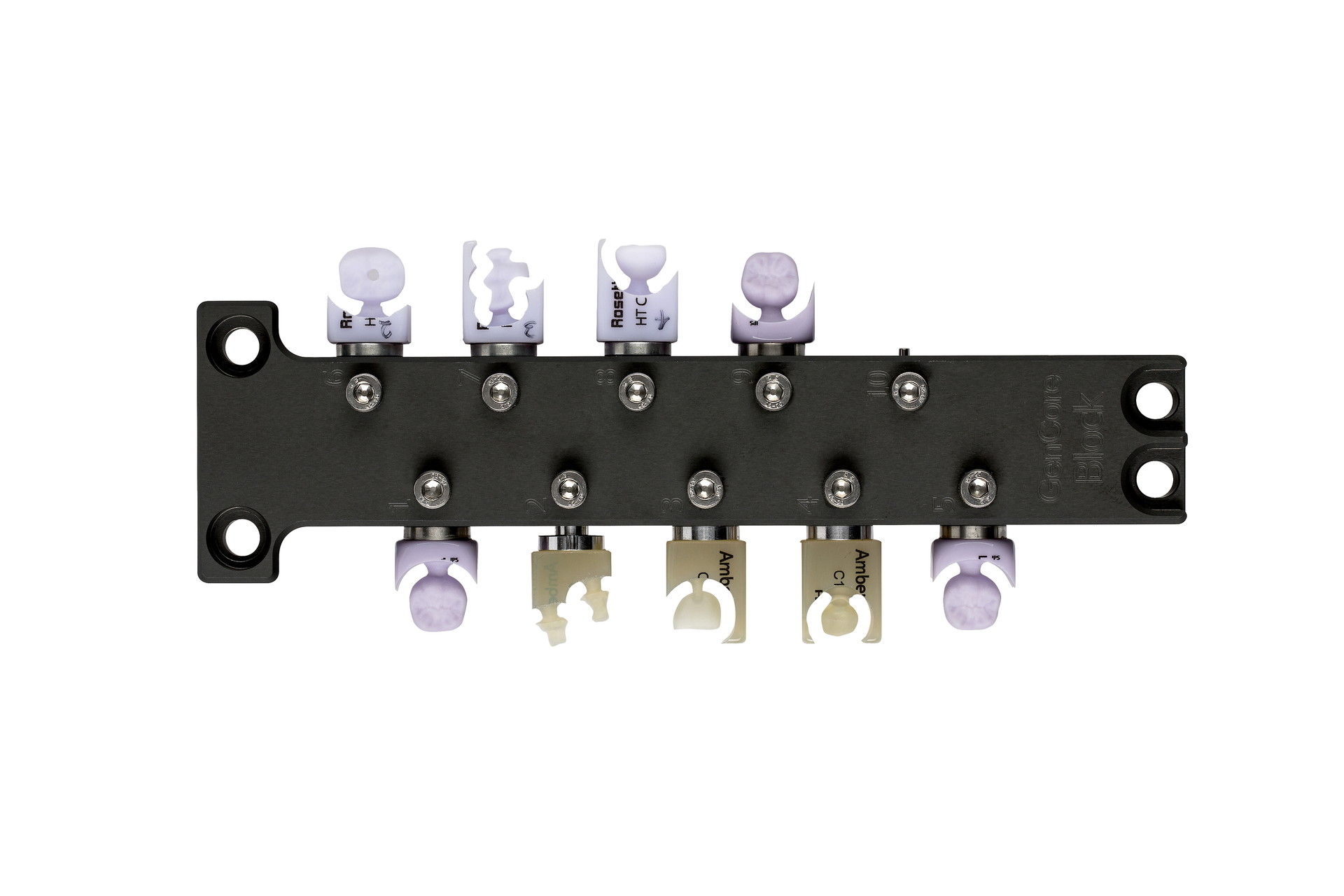

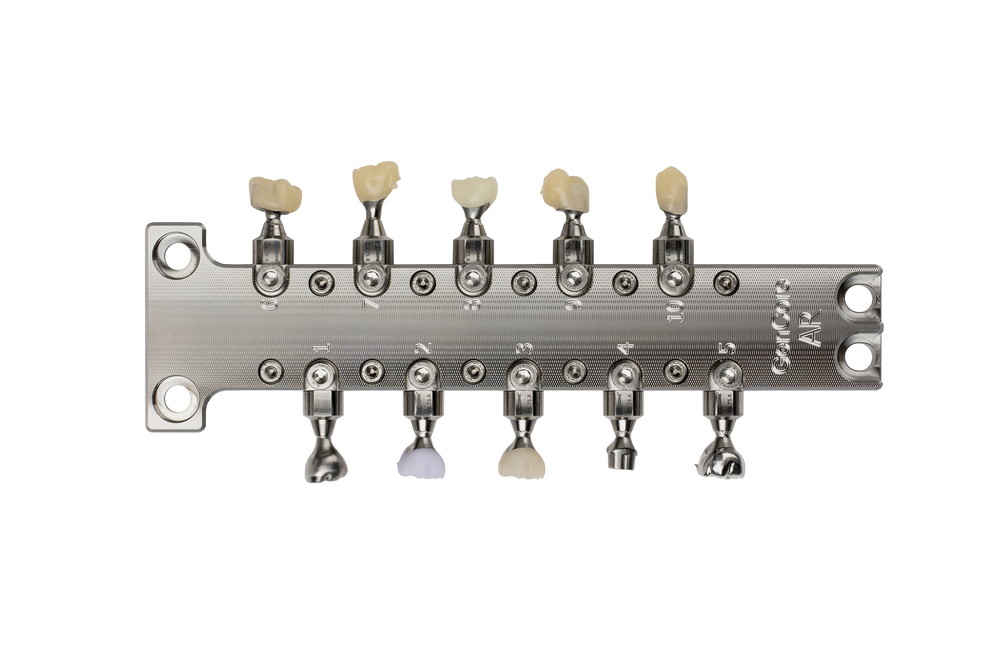

Block Jigs
#10 Slots (5-Axis Machining)
C-Clamp Jigs
Φ98.5mm Disk

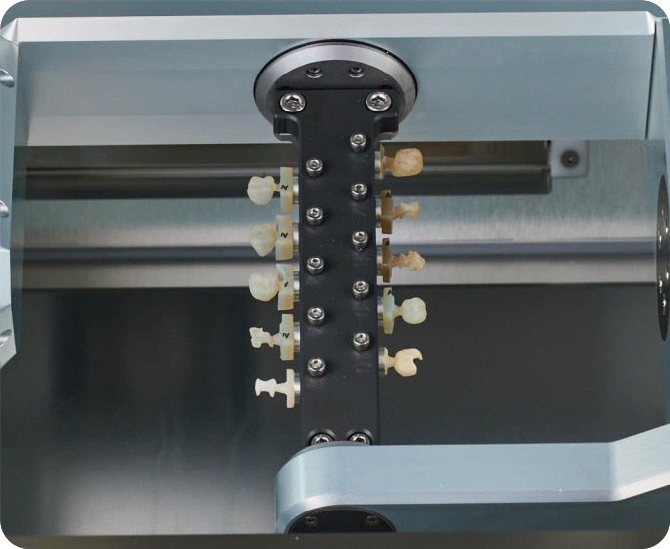

Premill Jigs
#10 Slots (5-Axis Machining)
Block Jigs
#10 Slots (5-Axis Machining)
Tool
Tool
Zirconia 4 types
Glass Ceramics 4 types
Metal Disc, etc.
Glass Ceramics 4 types
Metal Disc, etc.
Total 28 types
Zirconia 4 types
Glass Ceramics 4 types
Metal Disc, etc.
Glass Ceramics 4 types
Metal Disc, etc.
Total 28 types
Specification
Specification
| Milling Method | Combined dry/wet | |
|---|---|---|
| Size (W x D x H) |
Machine | 607 x 768 x 910mm / 23.90 x 30.23 x 35.43 inch |
| Table | 607 x 768 x 790mm / 23.90 x 30.23 x 31.10 inch | |
| Weight | Machine | 135kg / 297.62lb |
| Table | 70kg / 154.32 lb (80-90kg with full option included) | |
| Spindle | Capacity | DC 1.37kw |
| Max. rotation | 60,000 RPM | |
| Ave. Torque | 20,1 Ncm (S1, IEC 60034-1) | |
| Drive Axis | Simultaneous 5 Axis | |
| Motor | 400W Servomotor (all 5 axis) | |
| Axis Drive Control |
100% Full Closed loop Drive Control System | |
| Axis Drive Unit |
X / Y / Z axis | C5 Class Ballscrew & LM Guide |
| A / B axis | Harmonic drive | |
| Axis Drive Range |
X / Y / Z axis | 200mm / 256mm / 130mm |
| A / B axis | +35° to -35° / 360° (Free rotation) | |
| Tool Pockets | 28 types | |
| Monitor | 13.3″ LCD Touch Monitor |

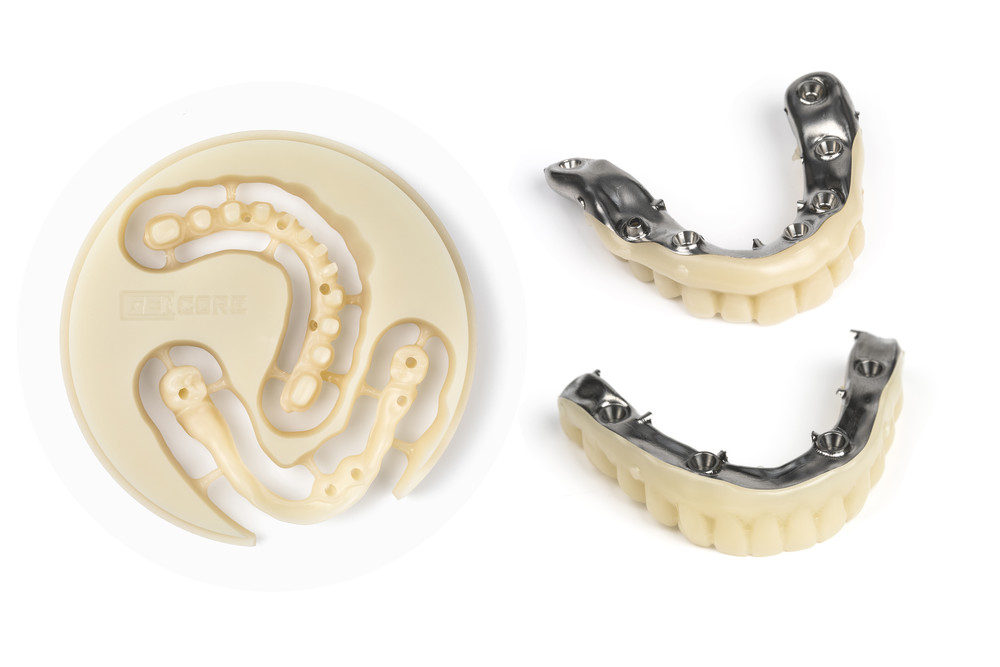

Materials & Results
Glass Ceramics

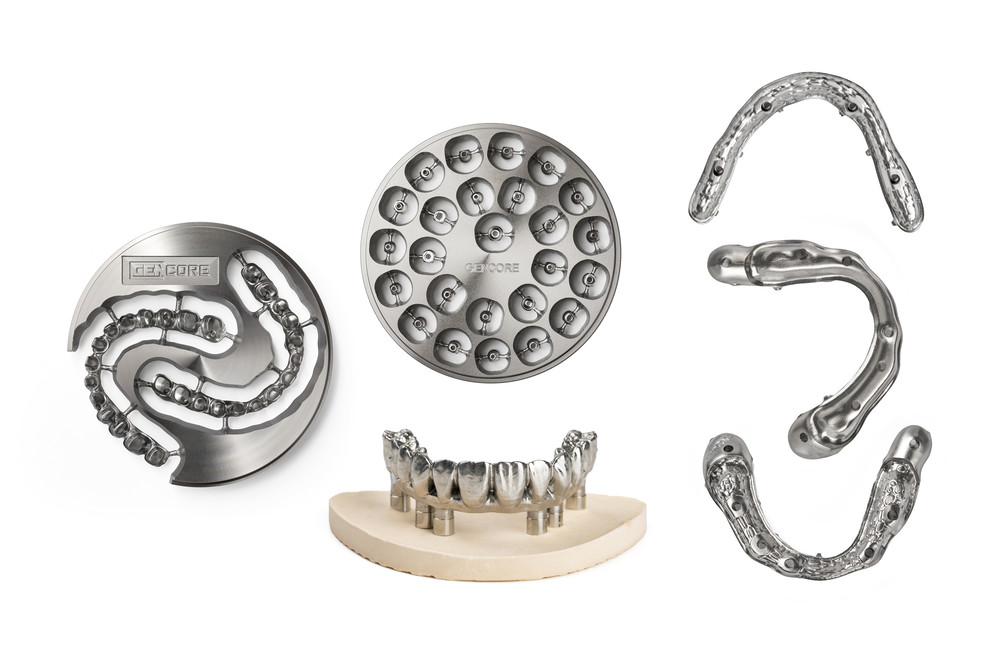

Metal Disc

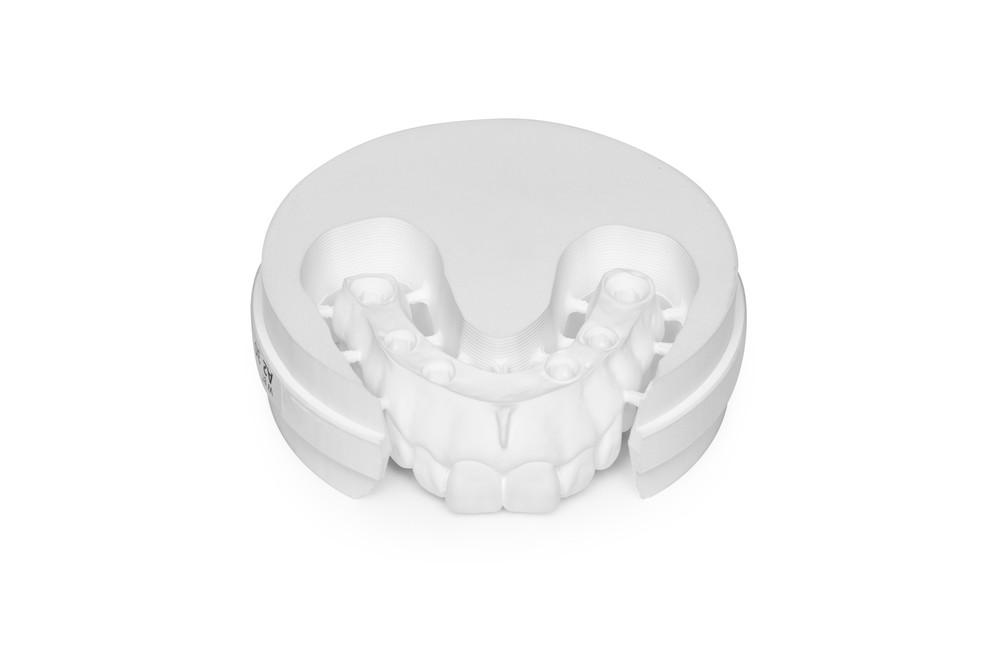

PMMA

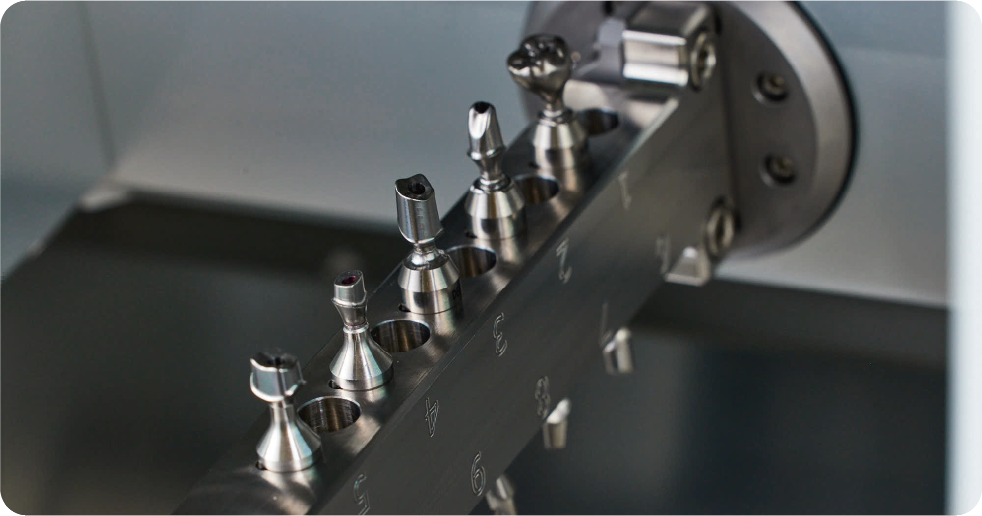

Ti. Premilled
Zirconia
Hybrid Resin
Glass Ceramics
Metal Disc
PMMA
Ti. Premilled
Zirconia
Hybrid Resin
