DESIGNED FOR YOUR CONVENIENCE
Streamline design for easy one-hand grip 4.7 kg head for stable positioning Only 2 clicks needed for capturing Detachable control panel
DESIGNED FOR YOUR CONVENIENCE
Streamline design for easy one-hand grip 4.7 kg head for stable positioning Only 2 clicks needed for capturing Detachable control panel
DETEACHABLE CONTROL PANEL
HAZARD FREE
ROUNDED EDGES
EASY ONE-HAND GRIP
HAZARD FREE
ROUNDED EDGES
EASY ONE-HAND GRIP
DETEACHABLE CONTROL PANEL
HAZARD FREE
ROUNDED EDGES
EASY ONE-HAND GRIP
HAZARD FREE
ROUNDED EDGES
EASY ONE-HAND GRIP

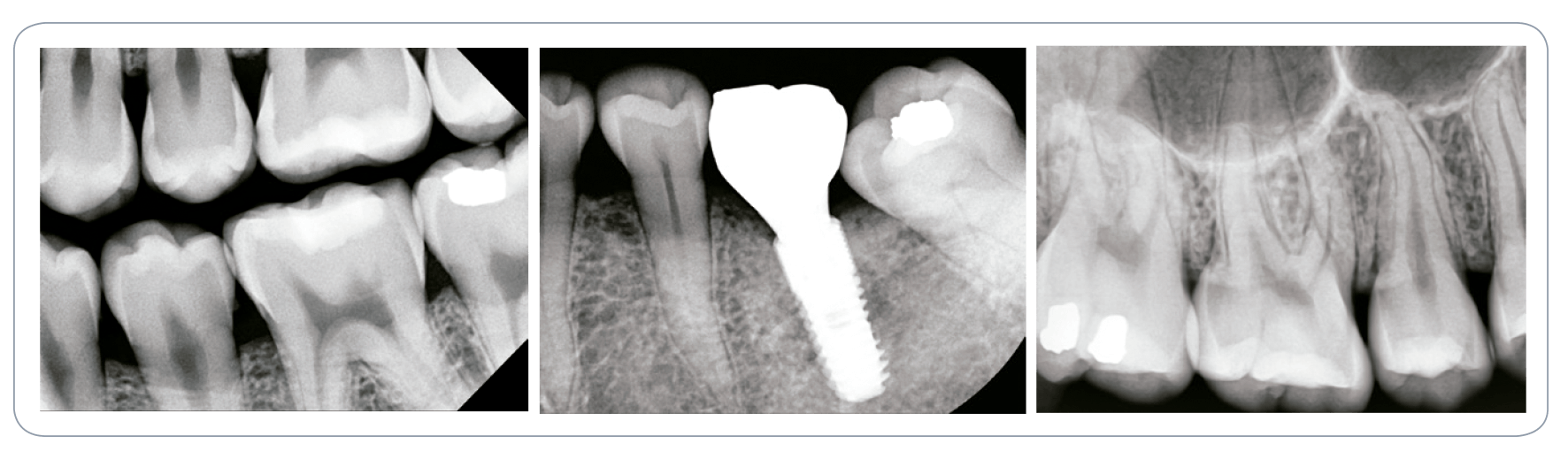

SAFE & CLEAR IMAGE
EzRay Premium provides diagnostic values
with advanced technology.
with advanced technology.
A focal spot of 0.4 mm create sharpen images
perfectly matched to whatever digital intraoral
sensor, PSP or film product you use.
perfectly matched to whatever digital intraoral
sensor, PSP or film product you use.
* Exposure condition 65kV, 3.0mA
SAFE & CLEAR IMAGE
EzRay Premium provides diagnostic values with advanced technology.
A focal spot of 0.4 mm create sharpen images
perfectly matched to whatever digital intraoral sensor, PSP or film product you use.
perfectly matched to whatever digital intraoral sensor, PSP or film product you use.
* Exposure condition 65kV, 3.0mA
EASY TO USE
Intuitive icons on LED screen Detachable panel
OPTIMIZED AUTOMATIC SETTINGS
EzRay Premium has a pre-programmed setting for each tooth. With one click of a button, it automatically optimizes image capturing such as capture area and patient condition for each case.
EASY TO USE
Intuitive icons on LED screen Detachable panel
OPTIMIZED AUTOMATIC SETTINGS
EzRay Premium has a pre-programmed setting for each tooth. With one click of a button, it automatically optimizes image capturing such as capture area and patient condition for each case.
SPECIFICATIONS
VEX-S100W
EzRay Premium™
| Focal Spot | 0.4 mm |
|---|---|
| Tube Voltage (kV) | Selectable 50 ~ 70 kVp |
| Current | 4 -7 mA |
| Exposure Time | Selectable 0.04 ~ 2.0 sec |
| Total Filtration | Min. 1.5 inch AI |
| Arm Length (Option) | 450, 600, 900 mm |
| Line Voltage | 100 ~ 230V ± 10% |
| Accessories | Exposure hand switch |
| Cone | Round 20cm (8″) Option: Round 30cm (12″), Rectangular 20cm / 30cm (8″ / 12″) |
SPECIFICATIONS
VEX-S100W
EzRay Premium™
| Focal Spot | 0.4 mm |
|---|---|
| Tube Voltage (kV) | Selectable 50 ~ 70 kVp |
| Current | 4 -7 mA |
| Exposure Time | Selectable 0.04 ~ 2.0 sec |
| Total Filtration | Min. 1.5 inch AI |
| Arm Length (Option) | 450, 600, 900 mm |
| Line Voltage | 100 ~ 230V ± 10% |
| Accessories | Exposure hand switch |
| Cone | Round 20cm (8″) Option: Round 30cm (12″), Rectangular 20cm / 30cm (8″ / 12″) |
DIMENSIONS [Unit : mm]
EzRay Premium™
DIMENSIONS [Unit : mm]
EzRay Premium™
